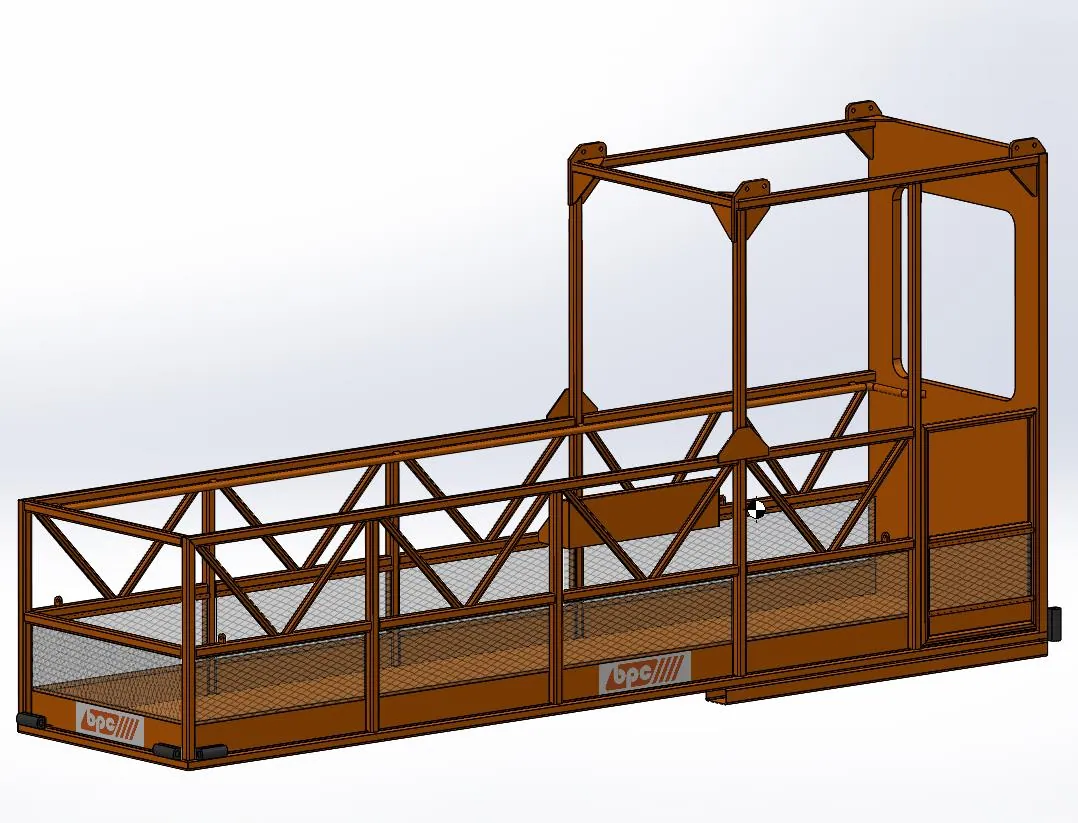

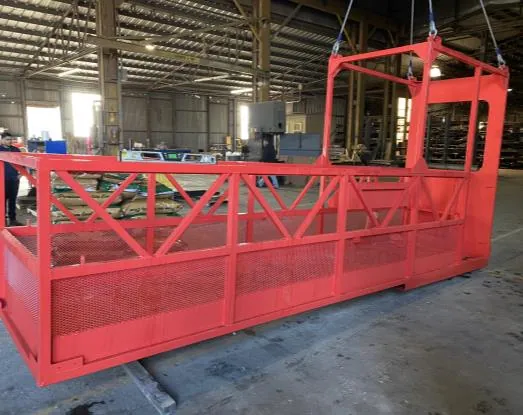

Cantilever Work Basket

A three-person cantilever work platform for overside and under-deck work, with general arrangement drawing and recommended practice supplied.

Request a quote
Cantilever Work Basket

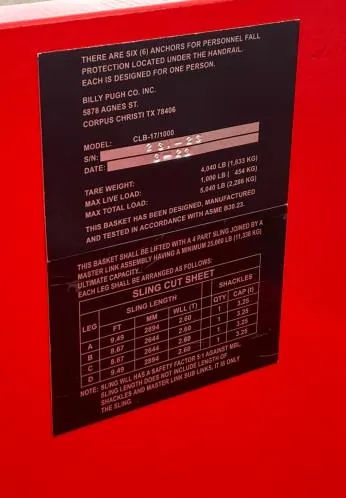

Specifications

SpecificationValue
ModelCLB-1000/17

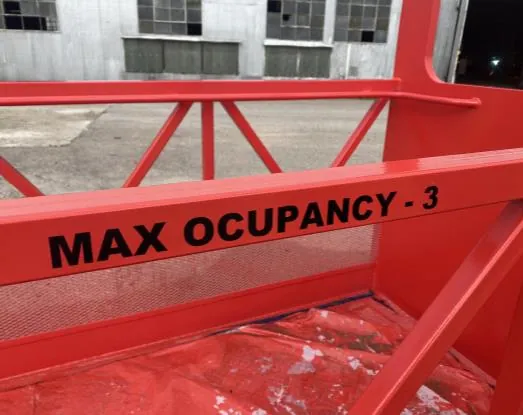

CapacityThree persons
Working load limit1,000 lbs (453.6 kg)
— on the cantilevered deck750 lbs (340.2 kg) maximum
— within the cage250 lbs (113.4 kg) maximum
Tare weight with slings4,100 lbs (1,859.7 kg)
Maximum gross weight5,100 lbs (2,313.3 kg)
Proof load test1,250 lbs, 125% of WLL, every unit
Sling design factor10:1 on minimum breaking load
Length, structural / outfitting17′ 3-1/2″ (5.271 m) / 17′ 7-3/4″ (5.378 m)
Width, structural / outfitting4′ 2″ (1.270 m) / 4′ 6-1/4″ (1.378 m)
Height8′ 2″ (2.489 m)
Cantilever reach11′ (3.35 m)

Key Design Features

  • Designed to ASME B30.23-2022 "Personnel Lifting Systems", with a structural calculation package sealed by a registered Professional Engineer (State of Texas)

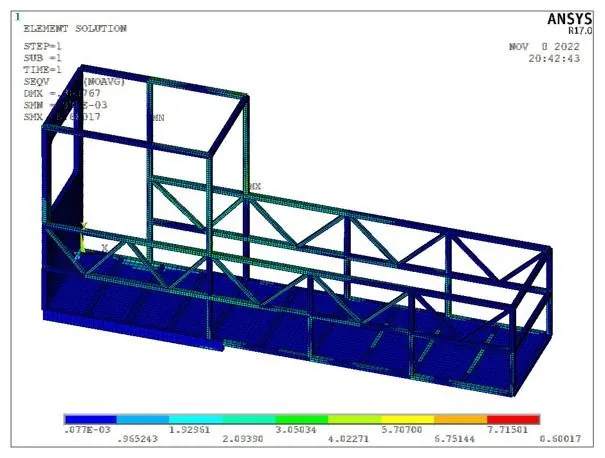

  • Designed using finite element analysis
  • Fixed counterweight system; suspends 2° upward when empty and declines 4° with the cantilever fully loaded
  • Every basket is proof load tested to 125% of the working load limit and incline tested during the load test; results are recorded on each unit's Certificate of Verification
  • 11 ft (3.35 m) cantilever reach; three persons work in the outermost cantilevered section
  • Inward opening, spring latching door
  • Internal handrails around the full perimeter of the work area
  • Dedicated padeyes for personnel fall protection tie-off and for tagline connection

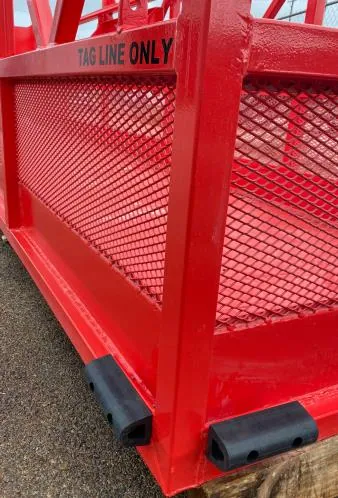

  • Rubber bumpers on all corners; forklift tubes under the counterweight end for transport between lifts
  • 2" steel square tubing frame with a two-coat marine paint system
  • Four-leg wire rope sling assembly (5/8" 6×36 IWRC, EIPS, swaged Flemish eyes) with 5/8" Crosby or Green Pin shackles

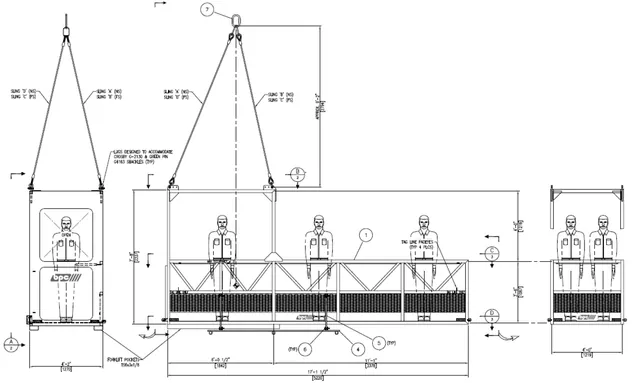

  • Detailed general arrangement drawing and recommended practice available to all customers

Standards

  • ASME B30.23-2022 — Personnel Lifting Systems
  • DNVGL-ST-N001:2016 — Marine Operations and Marine Warranty
  • API RP 2A-WSD, 2014 — Planning, Designing and Constructing Fixed Offshore Platforms
