Specifications
| Model | Persons | Working load limit | Tare with slings | Max gross | ABS type approval |
|---|---|---|---|---|---|
| OMB-2 | 2 | 1,100 lbs | 650 lbs | 1,750 lbs | Approved |
| OMB-4 | 4 | 1,100 lbs | 875 lbs | 1,975 lbs | Approved |
| Model | Description | Weight | Dimensions (L x W x H) |
|---|---|---|---|
| OMB-1 | Single man basket | 300 lbs | 36″ x 36″ x 90″ |
| OMB-2 | 2 man basket | 550 lbs | 48″ x 48″ x 91″ |
| OMB-4 | 4 man basket | 750 lbs | 80″ x 48″ x 91″ |
| OMB-S | OSHA man basket sling |
ABS type approval
OMB-2 and OMB-4: ABS Confirmation of Product Type Approval 25-0206262-PDA, assessed to ASME B30.23-2022. Approved as suspended work baskets for lifting personnel only; not for personnel transfer, and always positioned over a solid floor or deck while occupied. Each unit requires ABS unit certification.

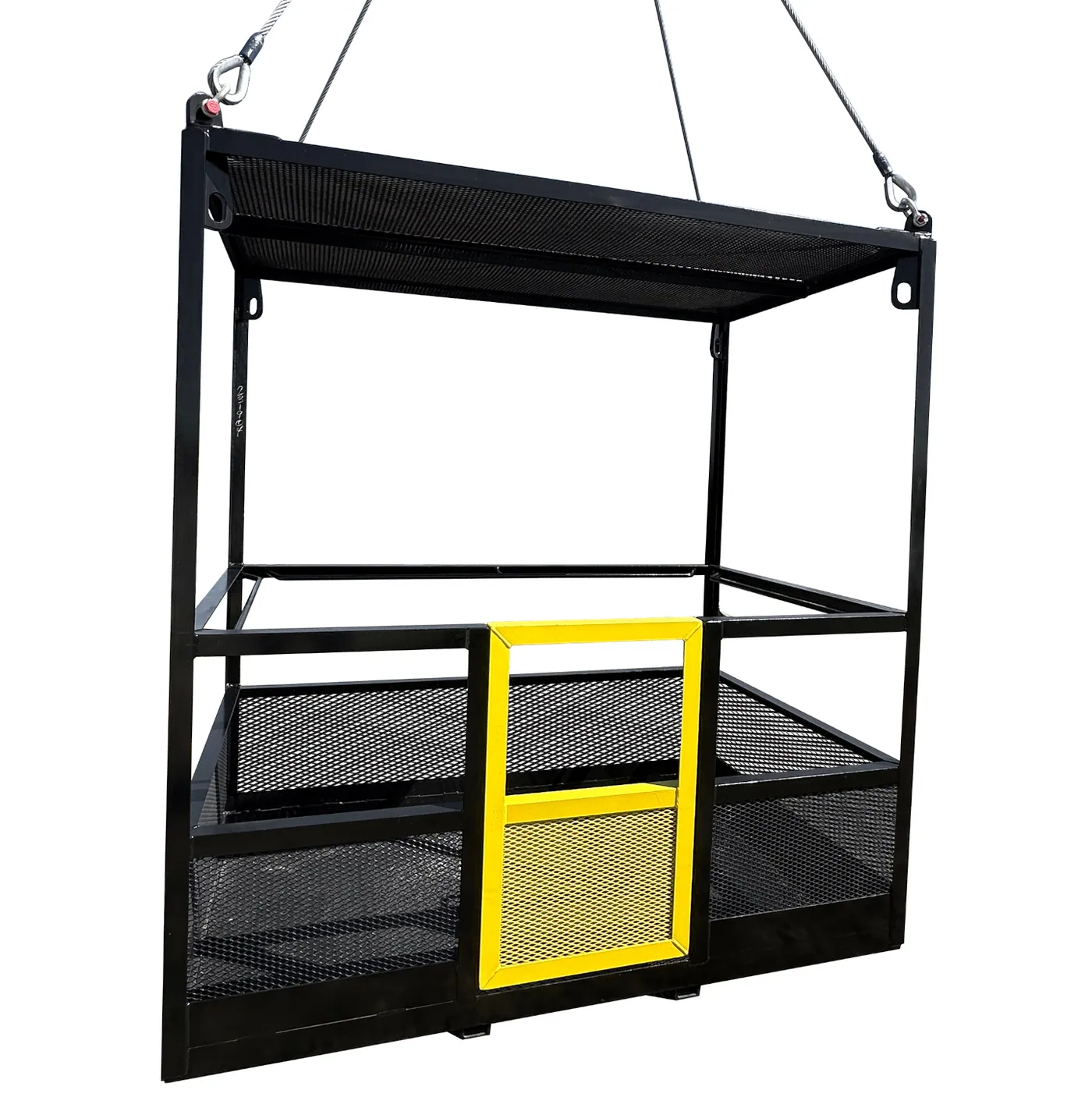

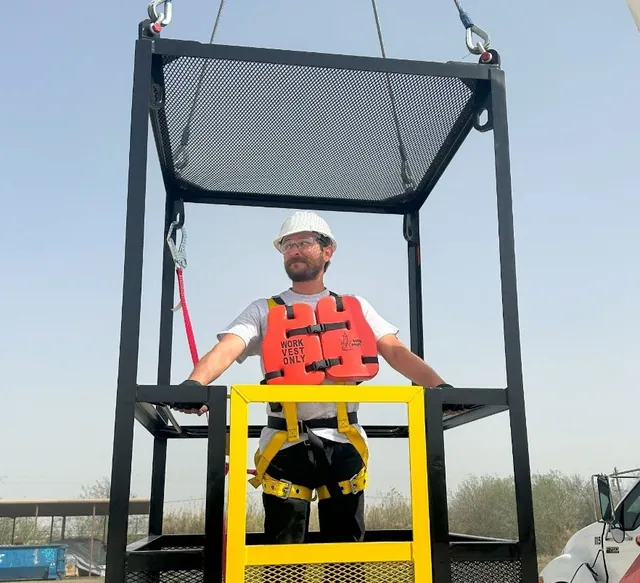

Billy Pugh Company's OSHA Man Baskets (OMB) are built from heavy-duty steel for work at height by crane or forklift, with the quality you expect from Billy Pugh Company.

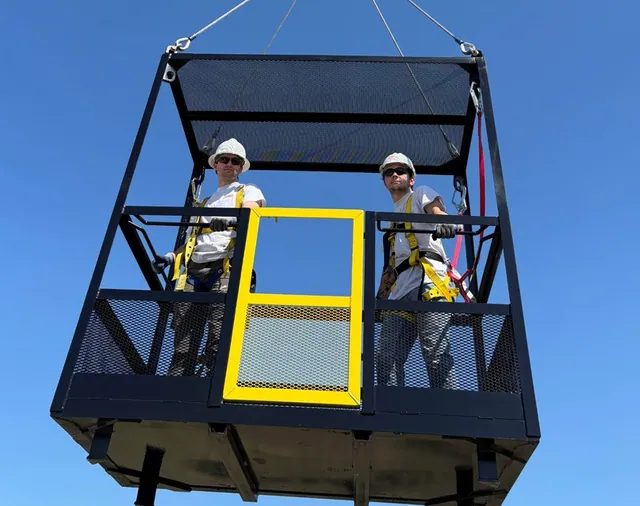

- Crane baskets offer overhead protection
- Room for workers and tools
- Safety guard rail
- Diamond tread plate floor
- Crane Basket Sizes: 1, 2, & 4
- Forklift Basket Size: 2
- 125% test weight on certain models
- Used in a variety of applications both on and offshore

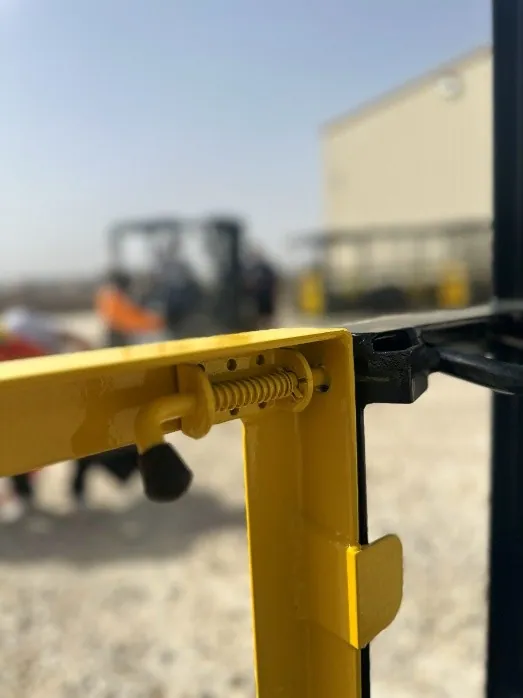

- Access gate with automatic latch opens inward
- Shock-absorbing feet on the OMB-1
OMB-2 and OMB-4 details

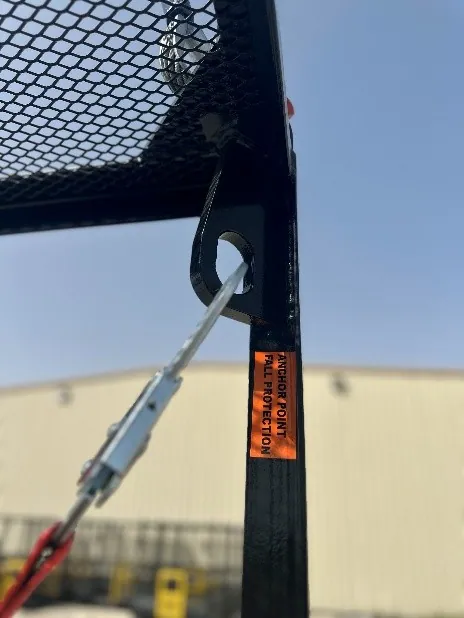

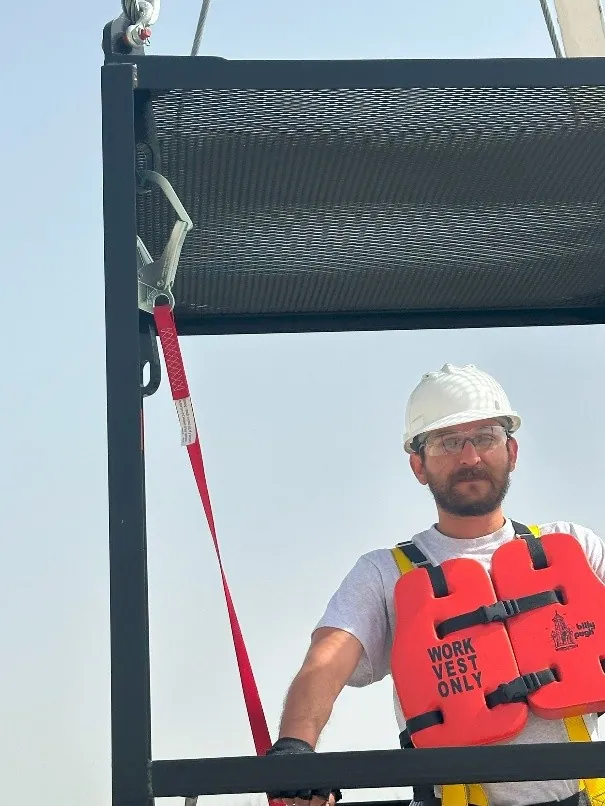

- Four elevated anchorage points
- Padeyes designed for 3.25 MT shackles
- 5/8″ four-leg slings with master link assembly
Documents and certificates are available in the Downloads section under Support.
