Specifications
| Model | Persons | Working load limit | Tare with slings | Max gross | ABS type approval |
|---|---|---|---|---|---|
| X-1000-4 | 4 | 1,200 lbs | 800 lbs | 2,000 lbs | Approved |
ABS type approval

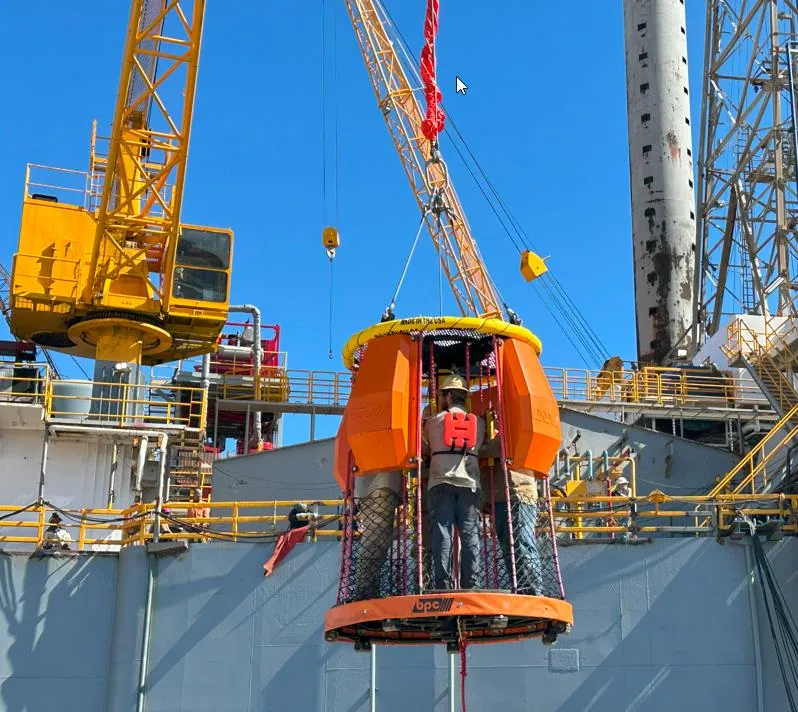

X-1000-4: ABS Confirmation of Product Type Approval 25-0393000-PDA, valid to September 18th, 2030, for personnel transfers by crane. Each unit requires ABS unit certification, including a proof load test witnessed by an ABS surveyor.
We received clear feedback that “quick egress” was the most important safety feature valued by the rider. Notably, we also learned that riders want to stand during transfers, face inward, with a soft takeoff/landing being very important.
We designed the new X-1000 with safety features that can be retrofitted to the X-904-4. We can accommodate the upgrades and retrofit process during the standard 2-year Refurbishment Process. Alternatively, the X-1000 is available as a complete kit.

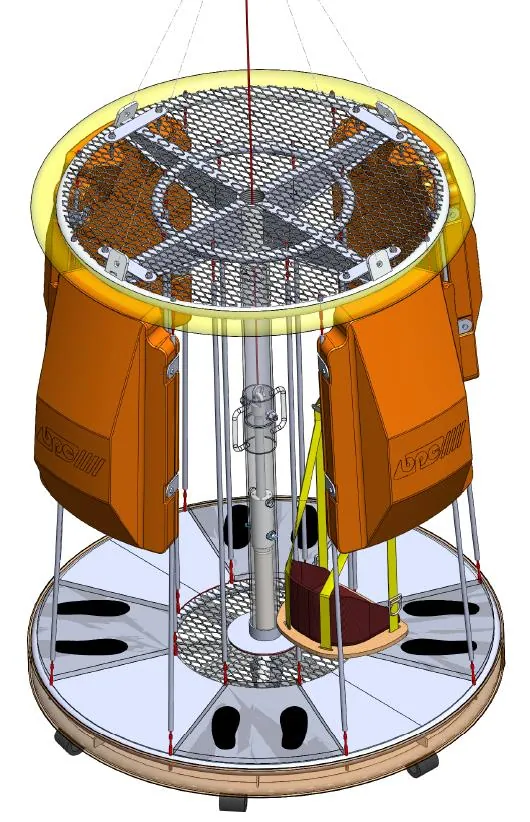

Key Design Features

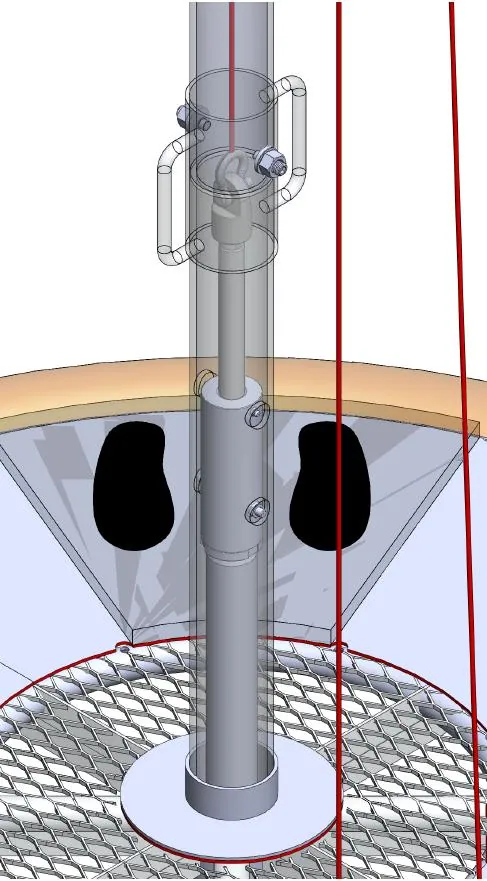

- A Safelink designed Poseidon C-500 Passive Heave Compensator has been incorporated into the center pole and connects to the upper master link in the rigging. This engages during the start of the lift and then transfers the load to the main rigging. This softens the initial take off from the deck and reduces risk of jerking the riders.
- Flotation modules have been added to the upper section of the grablines and top frame to incorporate self-righting floatation without impeding rider egress.

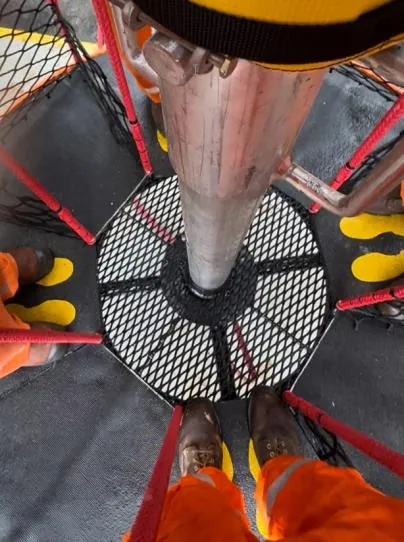

- Expanded metal has been added to the enter of the floor to enable the rider to simply glance down to see the deck approaching during the landing. This makes the rider more prepared for the landing.

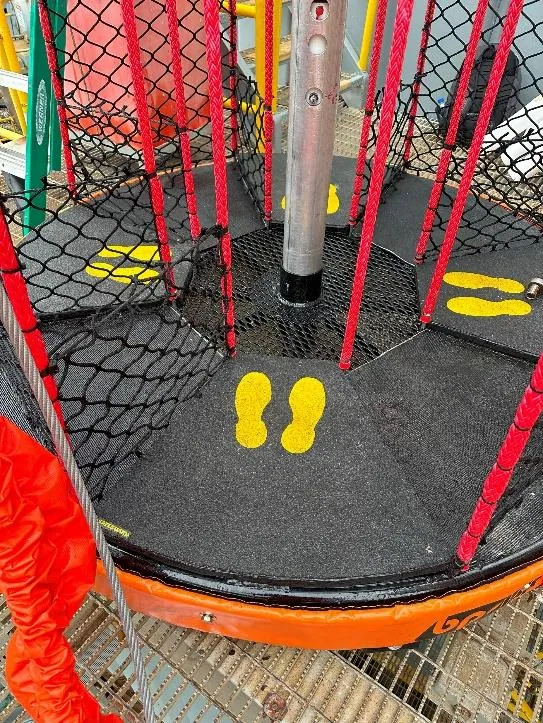

- 1” nitrile foam with a non-skid surface has been added to the standing areas providing the rider with a cushion for a softer landing.

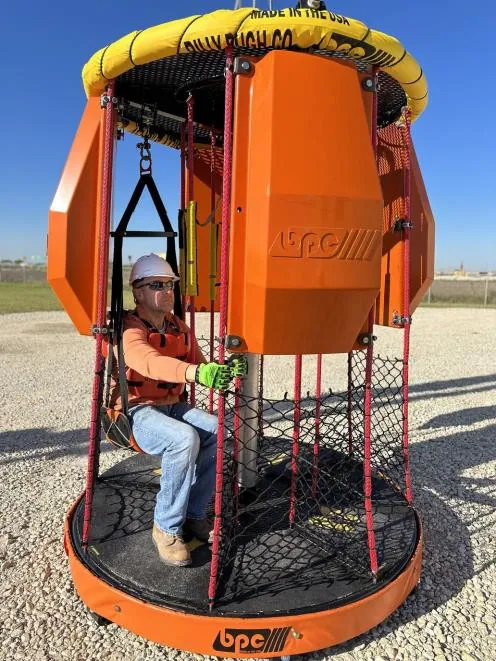

- The Emergency Seat is a removable separate product that attaches, via a scissor clamp, to the upper frame of any X-1000 or X-904 model. This gives riders a sitting option in the event of injury or illness, when standing is not advisable.

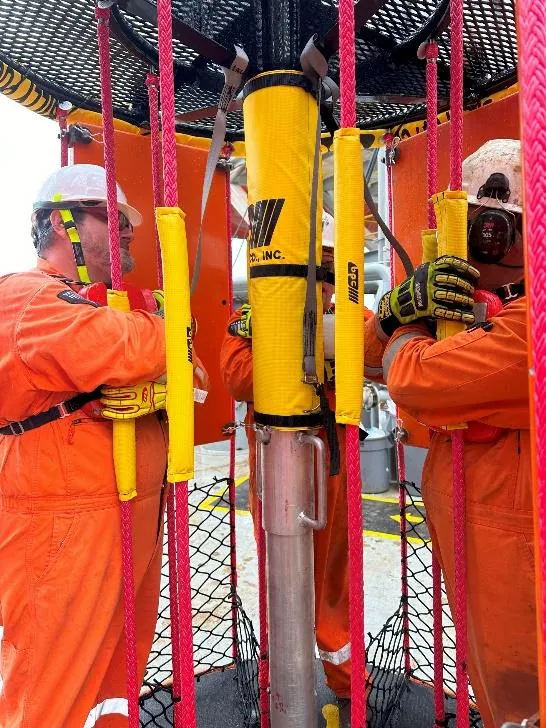

- The Grabline Cushions provide padding and comfort to the rider. Affix the cushion by wrapping it around the grabline & securing with Velcro at the desired height of the rider.
