Specifications
| Model | Description | Dimensions | Weight |
|---|---|---|---|
| X-870-4 | 4 person transfer net | 72″ x 72″ x 16″ | 256 lbs |
| X-871-4 | 4 person net, recommended for rough seas | 72″ x 72″ x 16″ | 270 lbs |
| X-871-6 | 6 person net | 84″ x 84″ x 16″ | 350 lbs |
| X-871-8 | 8 person net | 94″ x 94″ x 18″ | 400 lbs |
| X-871-10 | 10 person net | 94″ x 94″ x 22″ | 500 lbs |
| X-871-12 | 12 person net | 126″ x 126″ x 22″ | 580 lbs |
| X-816 | 4 person net with 13′ load line | 72″ x 72″ x 16″ | 240 lbs |
| X-840 | 4 person net with 60″ bottom ring | 60″ x 60″ x 16″ | 245 lbs |
| A | Added air cushion for a softer landing, especially in rough seas | ||

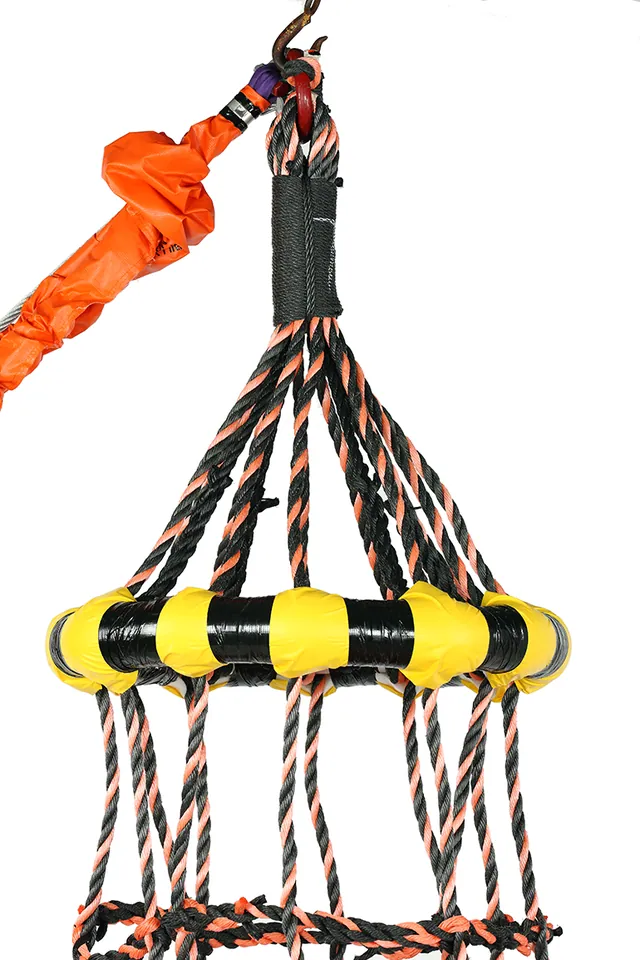

| D/C | Double cable safety load line |
| Accessory | Description |
|---|---|

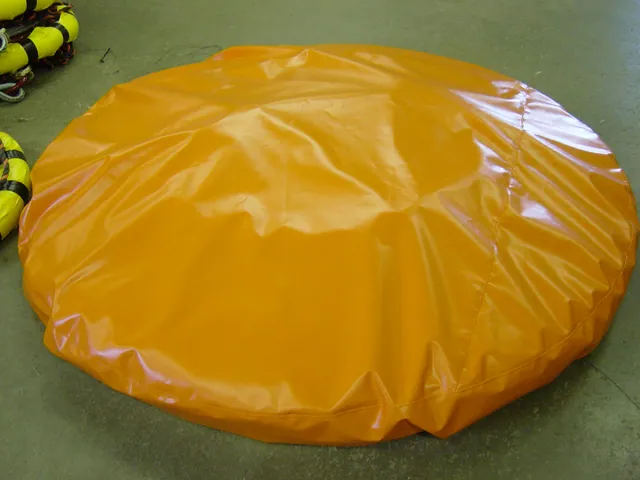

| 800 Series storage cover | Vinyl storage covers for X-816 through X-871-12; protects from UV and weather |

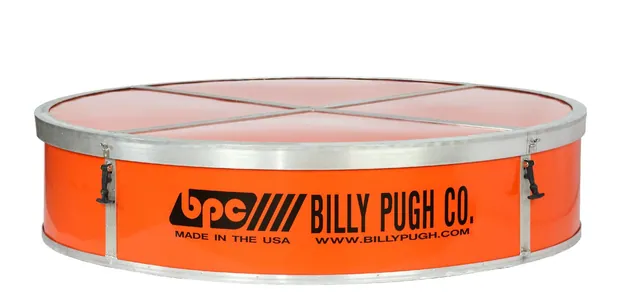

| PNB-1 storage box | All-weather storage boxes for the X-871-4 through X-871-12 |

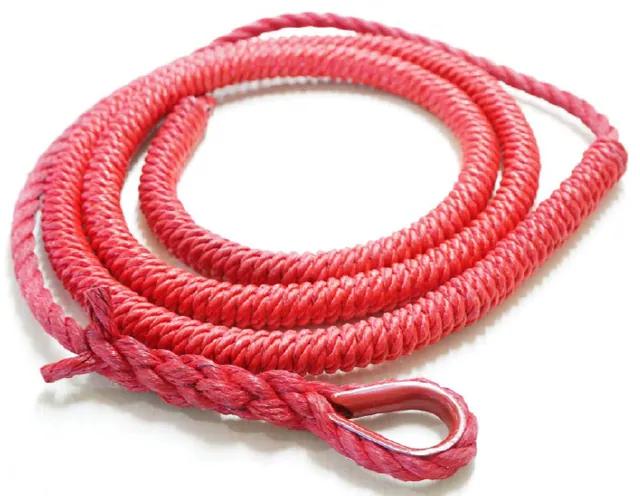

| PTL-1 | Tag line, 1 1/2″ overall diameter, dipped, wrapped, stainless steel thimble eye on one end (conforms to API standards) |
| SDTG-1 | 1″ overall diameter, 1/2″ center rope wrapped with 5/16″ nylon rope, dipped, 1/2″ 304 stainless steel thimble eye on one end (conforms to API standards) |
Offshore Industry Symbol.

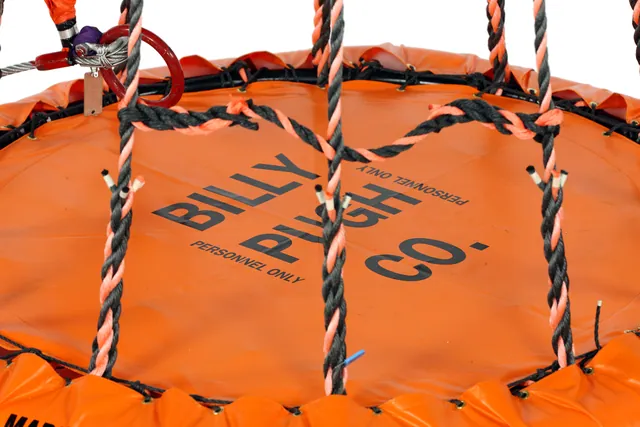

The Billy Pugh personnel net has become the industry standard all over the world. It has saved and protected millions of riders over the years.
Need the Room?
X-800 is designed for offshore operations that need a “small footprint” for their personnel basket.
60 Years and Running.
Others have tried to reproduce the X-800, but still can’t reproduce the quality that is Billy Pugh Company.

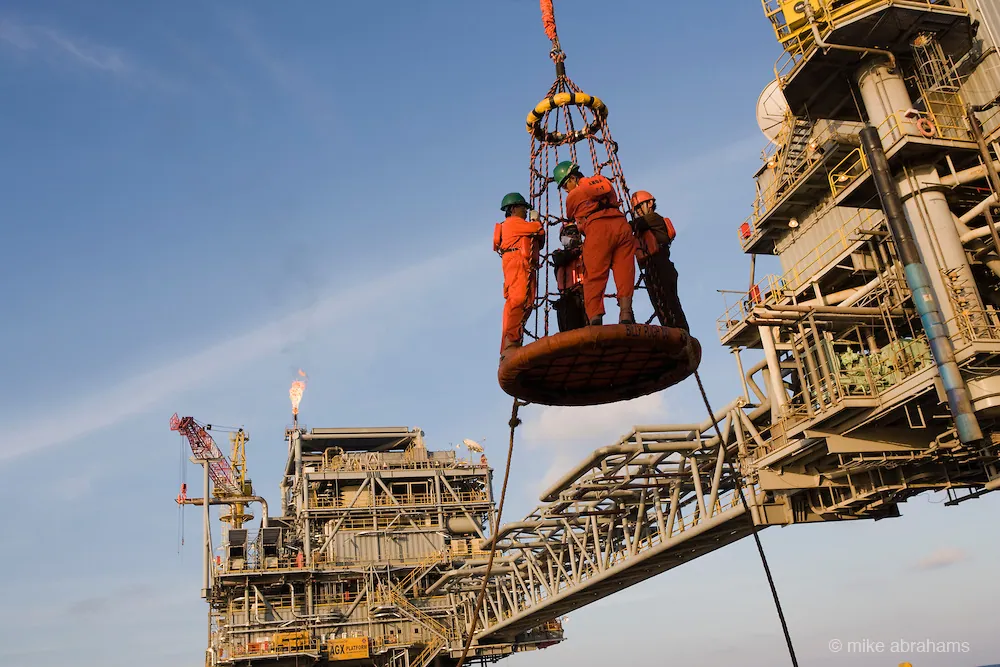

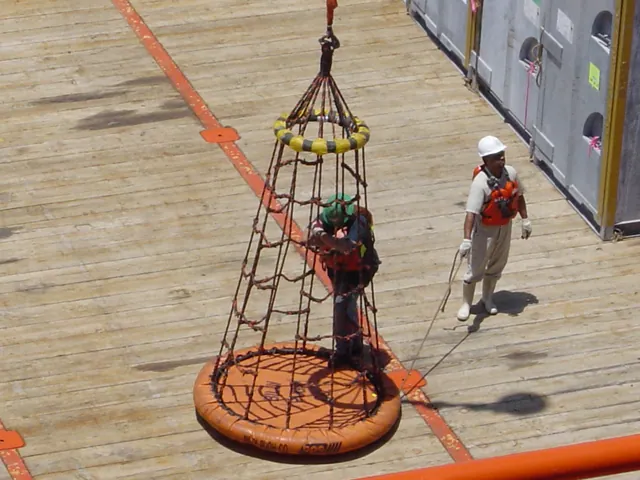

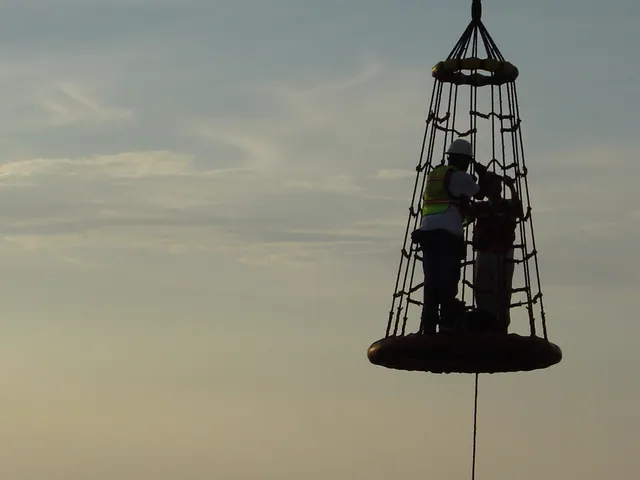

Many years ago in the infancy of the offshore industry, people were transported to and from offshore rigs and platforms with the use of a cargo net. Personnel would hang on to the outside of the net and be moved from boat to rig. Billy Pugh figured out quickly that this was a formula for some serious accidents. A new device was then designed by Billy Pugh as a safe transfer system that allowed personnel to embark and disembark quickly and safely. The Billy Pugh Personnel Transfer Net allowed workers to have the sensation of being inside the device, but also allows the freedom to get off and away from danger when in rough sea conditions.
The Billy Pugh personnel net became the industry standard all over the world. It has saved and protected millions of riders over the years and is a symbol of the offshore industry. Many a new offshore employee remembers his or her first ride on a personnel transfer net; it is almost a rite of passage. There have been many attempts to improve or even replace the personnel net but the basic idea and design is still in use around the world.
The X-800 is valid for 2 years from the In Service Date which is the date the device is removed from its packaging.
Product Features
- Servicing offshore industry for over 60 years.
- Collapsible for easy storage
- Affordable
- More offshore safe transfers than any personnel transfer device in history
- Inducted into the Offshore Oil Hall of Fame
How to get the In Service Date?
In the event the In-Service Date was not noted when unwrapped, you can use the following dates for your records.
Transferring one single person; what is the manufacturer´s recommendation on regards to where is the better place the person should be located? Center or on the ring.
- In-Service Date – The date the device was unwrapped, if not the follow date will apply.
- Good Receiving Date (GRN Date) – The date the customer received the goods from their forwarding agent, if not the follow date will apply.
- Invoice Date (From Distributor to Customer) or Delivery Order Date (From Distributor to Customer) from a DO or Invoice, if not the follow date will apply.
- Purchase Order Date (Customer PO to Distributor), if not the follow will apply.
- Distributor Receiving Date from Billy Pugh, if not the follow will apply.
- Manufacturing Date
- There is no good ergonomic way to pick up luggage from an X-800 series basket without either bending at the waist or getting inside the basket. In either case, this is a potential for an injury.
- The X-800 series baskets have open “doors” for personnel to stand in. During rough seas/windy transfers, the basket can swing and luggage can fall out on to personnel below. This has happened before and an injury resulted from luggage striking the deck hand below. The X-900 series is designed for light luggage but this is a different system .
How often should the X-800 be replaced?
Why would I purchase an X-840 (as opposed to another net in the 800 series)? What’s the benefit?
Why would I purchase an X-816 (as opposed to another net in the 800 series)?
The X-816 is for operations that need a shorter stabilizer and load line assembly. This would be someone with a shorter boom unable to get a normal sized personnel net over the rail. The load line on an X-816 is 9 ft. shorter than a standard X-871.
